Injection systems
Steel injection packer — flat nipple
Flat-nipple variant for shallow drillings and tight working room against an adjacent face.
Details

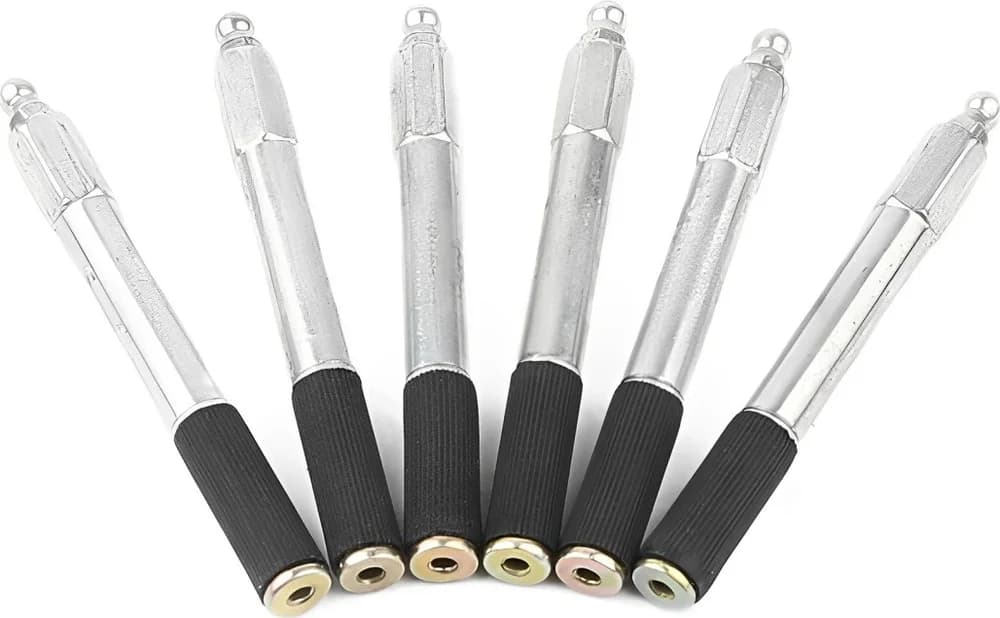

Steel injection packer — button head
Zinc-plated steel packer with a button-head nipple. The standard fitting for resin injection into cracks and joints.
Drilled into the crack at an angle, tightened until the rubber sleeve expands and grips, then charged through the non-return button head. The valve holds pressure between strokes so the resin keeps travelling rather than backing out of the hole.
Used with polyurethane resins for water-bearing cracks and with epoxies for structural re-bonding.
Specification
- Body
- Zinc-plated steel
- Seal
- Expanding rubber sleeve
- Connection
- Button-head nipple, non-return
- Injects
- PU and epoxy resins
Typical applications
- Live water-bearing cracks
- Construction joints in retaining walls
- Basement and lift-pit remedials
- Structural crack re-bonding
Need this priced against a drawing?
Send the detail or the specification clause. We quote the exact article, quantity and lead time — and flag it if something else in the range fits the build-up better.
